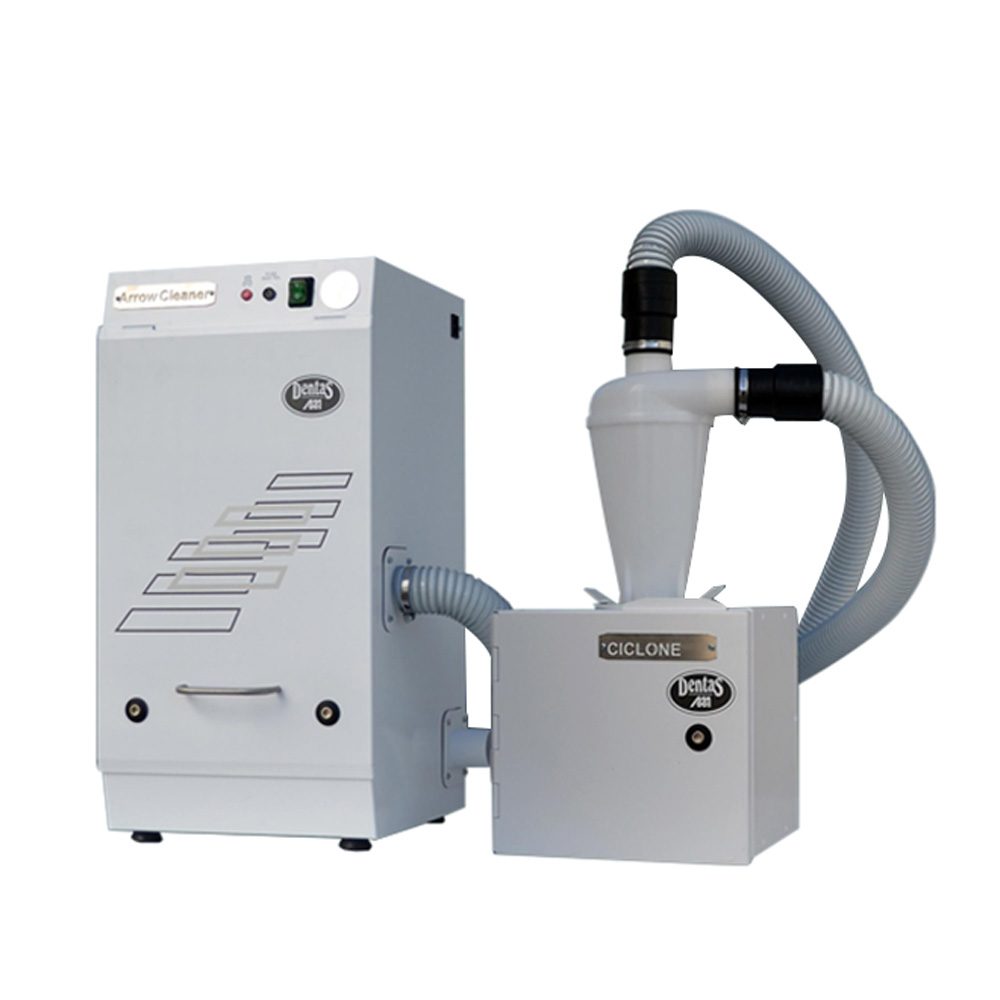

The Arrow Cleaner suction system is specifically designed to work with a dental CAD/CAMmilling machine.
The unit has a main sack filter, with a surface area of 7300 cm2, and a secondary cartridge filter of 3650 cm2. The air is discharged by the means of a Ø 5 cm pipe directly to the atmosphere, reducing the air temperature and recycling the dust. Suction activation can be manual or automatic, using an interface designed for any milling machine. The Ciclone adaption can be placed next to or on top of the cleaner.
It is equipped with a 1 kW motor, operating at 230 V.
Dimensions:
Width: 410 mm (800 mm)
Height: 710 mm (1500 mm)
Length: 430 mm
Weight: 45 kg
