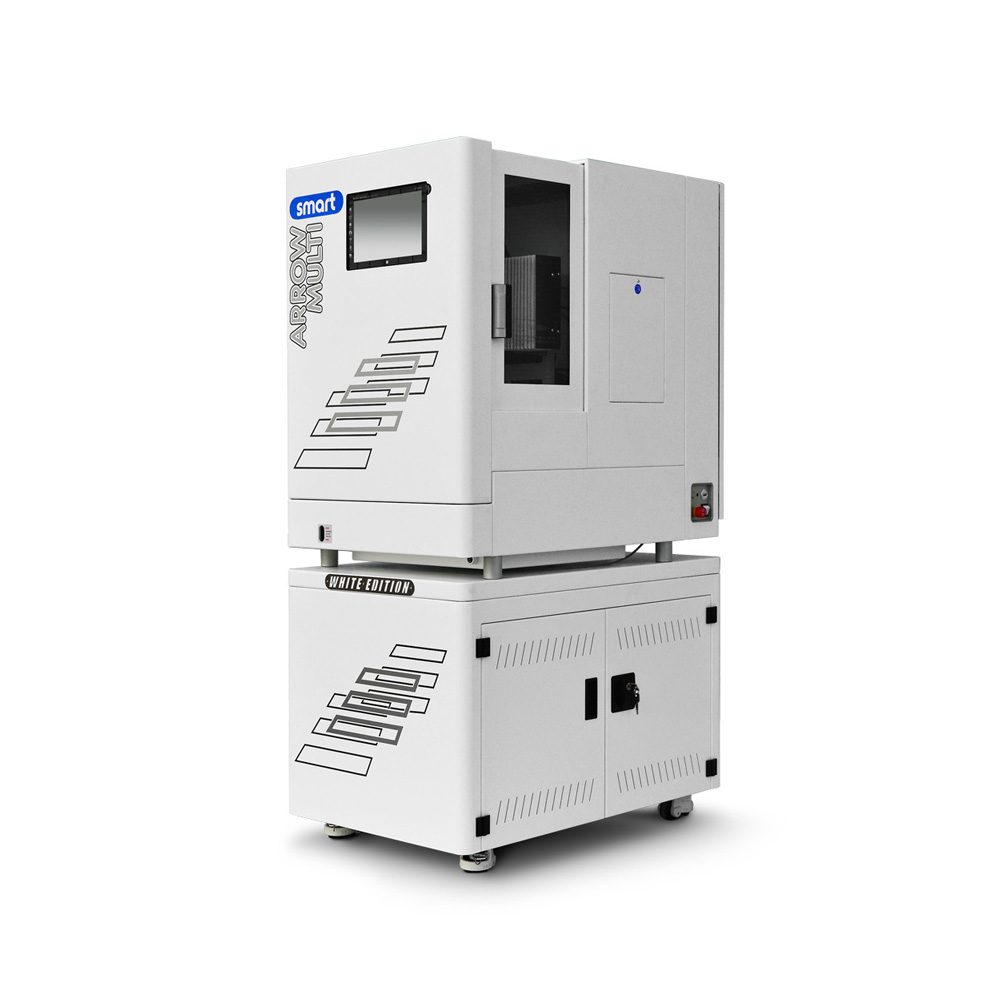

The Arrow Mill Smart machine offers additional value for your laboratory with high accuracy and productivity. It allows great flexibility due to the large 15-unit tool changer. It is built on cast iron construction that ensures minimal vibration. Smart is suitable for large, medium and small-sized laboratories. It can be placed on top of the furniture, so it saves space.
Technical data:
– axes: 5-axial simultaneous operation
– working area X: 130, Y: 200, Z: 90, A: 360°, B: +-30°
– very good dynamics provided with five servo motors; maximum axis travel speed up to 10 m/min
– minimum resolution of 0,001 mm
– spindle: high-frequency spindle (Jaeger 6000 to 60.000 rpm); Pmax/5s: 2,5 kW
– spindle cooling system with pump 21 l/min
– direct tool clamping system for tools with a diameter of 4 or 6 mm
– automatic tool change (capacity up to 15 tools)
– automatic tool length calibration and broken tool detection
– wet and dry treatment
– instant dust extraction during machining of zirconia (optional; with Arrow cleaner)
– compressed air minimum 6 bar at 120 l/min
– power supply: 230 V, 50/60 Hz
Dimensions:
Width: 600 mm
Height: 930 mm
Length: 910 mm
Weight: 220 kg
Pedestal dimensions:
Width: 600 mm
Height: 650 mm
Length: 910 mm
Weight: 55 kg
The pedestal is equipped with wheels for easy transportation and positioning.
