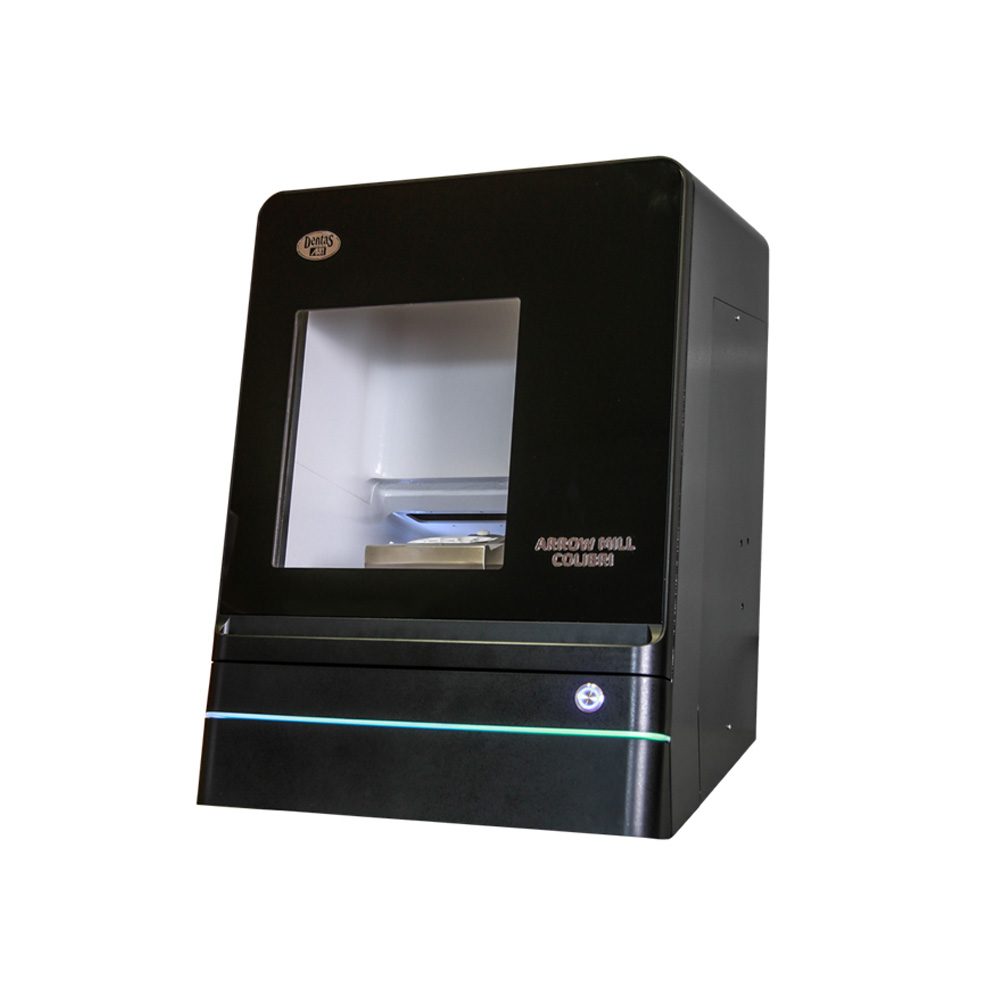

Meet new addition to long standing ArrowMill dental CAD/CAM family. Colibri is compact, very precise and affordable solution for any dental laboratory or even dental clinic. It has superior designed that will make this machine nice add on for any space.
It is 5 axis simultaneous milling machine for dry operation. It is specifically desing for milling zirconium frameworks, but also for PMMA, Peek and Wax.
Machine comes with dedicated CAM and Nesting software. Anatomical crowns and temporary restorations are milled with the highest precision. Simple operation of the Arrow Mill Colibri machine is achieved by special user-friendly license-free software. Data input is in STL format
Technical information:
– 5 axis simultaneous operation
– dry machining
– working area X:170, Y:215, Z:105, A:±30°, B:±360°
– automatic tool change (capacity up to 11 tools)
– good dynamics
– instant dust extraction during machining of zirconia
– voltage 230V, 50/60Hz 1.1kW
– spindle: high-frequency spindle max. 30.000 rpm; Pmax/5s = 350 W
– clamping system for tools with a diameter of 4mm
– compressed air min. 6 bar at 80 l/min
Allows processing of various materials in all axes:
– zirconium oxide
– soft sinter metals
– resins like PMMA/composite
– wax
– other materials in the future
Dimensions:
Width: 443 mm
Height: 628 mm
Length: 718 mm
Weight: 87 kg
