[Milling machine.]

Arrow Mill Beluga

Arrow Mill Beluga is a high-productivity milling machine for large and medium-sized laboratories. It provides high-quality surface treatment, flexibility through a large tool changer and precise material processing on a cast iron construction designed to minimise vibration.

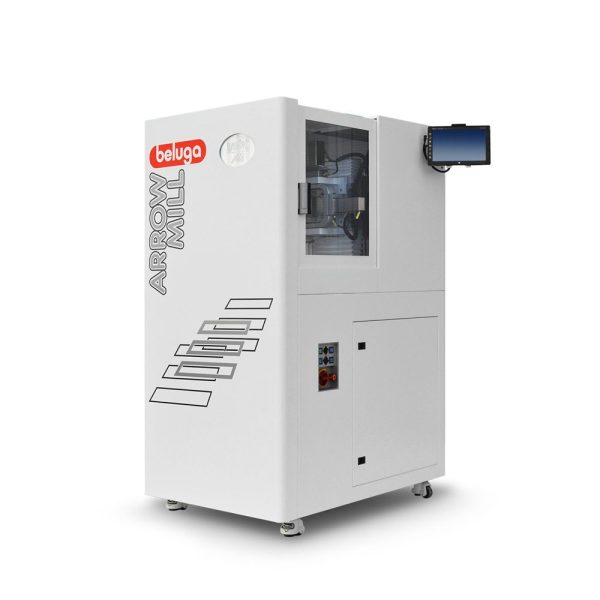

Arrow Mill Beluga milling machine
01
Axes 5-axial simultaneous operation
02
Working area X: 150, Y: 200, Z: 70, A: 360°, B: 30+-°
03
Maximum speed Up to 10 m/min
04
Resolution 0,001 mm minimum resolution
05
Spindle Jaeger 6000 to 60.000 rpm; Pmax/5s 2,5 kW
06
Tool changer Automatic tool change, capacity up to 18 tools
07
Processing Wet and dry treatment
08
Power supply 230 V, 50/60 Hz
Width 760 mm
Height 1600 mm
Length 1080 mm
Weight 450 kg

Send inquiry for Arrow Mill Beluga.

Send us a short message about your laboratory workflow. Our team will review your request and help you understand whether Arrow Mill Beluga fits your production needs.

No sales pressure. Your request is reviewed by technical specialists.

No sales pressure. Your request is reviewed by technical specialists.
